항온항습기
-
FOR CLOSE EXAMINATION ROOM
항온항습기는 전산 기기실의 부속품의 열팽창과 내부 응결 및 정전기 발생 등으로 인해 일어날 수 있는 동작 마비현상을 막기위해 헌열과 잠열이 항상 일정한 상태로 유지되도록 설계한 시스템으로 단순한 냉각 뿐만 아니라, 컴퓨터기기 제조자에 의해 지정된 운전 조건에 따라 온도,습도,공기청정,공기확산을 동시에 조절해 주는 첨단 제품입니다.
-

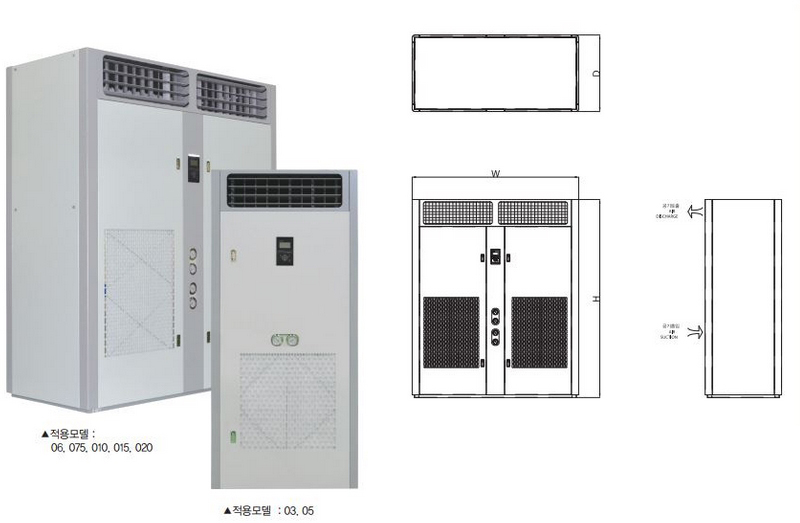

UP TYPE
Model SKS-AU-03 SKS-AU-05 SKS-AU-06 SKS-AU-075 SKS-AU-010 SKS-AU-015 SKS-AU-020 Item W 730 880 1,180 1,180 1,480 1,850 2,050 D 650 750 750 750 750 850 890 H 1,950 1,950 1,950 1,950 2,000 2,200 2,200
Model SKS-AU-03 SKS-AU-05 SKS-AU-06 SKS-AU-075 SKS-AU-010 SKS-AU-015 SKS-AU-020 Spec Cooling Cap. kcal/hr 8,400 14,000 16,800 21,000 28,000 42,000 56,000 W 9,767 16,279 19,535 24,419 32,558 48,837 65,116 Heating Cap. Kcal/hr 6,880 8,600 10,320 12,040 17,200 20,640 24,080 Humidifier Cap. L/hr 3.6 4.8 7.2 7.2 7.2 8.4 9.6 Blower Type Sirocco fan Air Volume CMM 36 60 72 90 120 180 240 Pressure mmAq 15-20 Fan Model #x EA #1 1/2DSx1 #1 3/4DSx2 #1 1/2DSx2 #1 5/8DSx2 #1 3/4DSx2 #2DSx2 #2DSx2 Motor kW 0.3x8P 0.5x8P 0.3x8P 0.4x8P 0.5x8P 1.1x8P 1.5x6P Compressor Type Hermetic(ECRoll) Power kW 2.2 3.7 2.2x2 5.5 3.7x2 5.5x2 7.5x2 Evaporator Type Multi Pass Cross Finned Tube Elec. Heater Type Aero Finned Tube Power kW x step 4x2 5x2 3x4 3.5x4 5x4 6x4 7x4 Humidifier Type Electrod Power kW 3 4 6 6 6 7 8 Air Filter Type Ployester (A.F.I 85%) Condensingt Unit Type Air Cooled Unit (Compressor, Receive-Tank, Suction Strainer) Air Volume 90 150 180 200 300 400 420 Fan Dia mm 500 600 500x2 700 600x2 700x2 750 Motor(8P) kW 0.1 0.2 0.1x2 0.4 0.2x2 0.4x2 0.75x2 Refrigerant R-22 / R407C Power Consumption kW 10.7 / 5.7 14.5 / 8.5 17.3 / 11.3 20.8 / 12.8 28.9 / 14.9 38.3 / 21.3 47.5 / 27.5 Dimension(WxDxH) mm 730x650x1950 880x750x1950 1180x750x1950 1180x750x1950 1480x750x2000 1850x850x2200 2050x890x2200
-
FOR COMPUTER ROOM
-

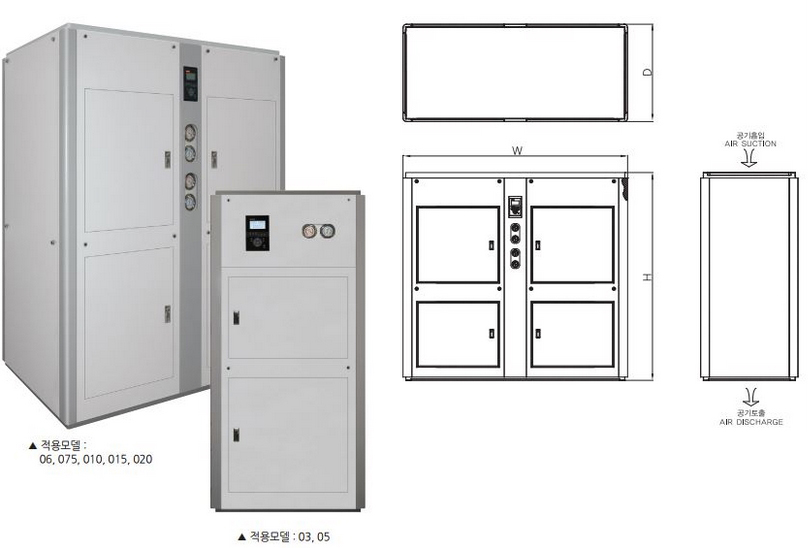

DOWN TYPE
Model SKS-AD-03 SKS-AD-05 SKS-AD-06 SKS-AD-075 SKS-AD-010 SKS-AD-015 SKS-AD-020 Item W 730 880 1,180 1,180 1,480 1,850 2,050 D 750 750 750 750 750 850 890 H 1,750 1,750 1,750 1,750 1,750 1,830 1,900
Model SKS-AD-03 SKS-AD-05 SKS-AD-06 SKS-AD-075 SKS-AD-010 SKS-AD-015 SKS-AD-020 Spec Cooling Cap. kcal/hr 8,400 14,000 16,800 21,000 28,000 42,000 56,000 W 9,767 16,279 19,535 24,419 32,558 48,837 65,116 Heating Cap. Kcal/hr 6,880 8,600 10,320 12,040 17,200 20,640 24,080 Humidifier Cap. L/hr 3.6 4.8 7.2 7.2 7.2 8.4 9.6 Blower Type Sirocco fan Air Volume CMM 36 60 72 90 120 180 240 Pressure mmAq 15-20 Fan Model #x EA #1 1/2DSx1 #1 3/4DSx2 #1 1/2DSx2 #1 5/8DSx2 #1 3/4DSx2 #2DSx2 #2DSx2 Motor kW 0.3x8P 0.5x8P 0.3x8P 0.4x8P 0.5x8P 1.1x8P 1.5x6P Compressor Type Hermetic(ECRoll) Power kW 2.2 3.7 2.2x2 5.5 3.7x2 5.5x2 7.5x2 Evaporator Type Multi Pass Cross Finned Tube Elec. Heater Type Aero Finned Tube Power kW x step 4x2 5x2 3x4 3.5x4 5x4 6x4 7x4 Humidifier Type Electrod Power kW 3 4 6 6 6 7 8 Air Filter Type Ployester (A.F.I 85%) Condensingt Unit Type Air Cooled Unit (Compressor, Receive-Tank, Suction Strainer) Air Volume 90 150 180 200 300 400 420 Fan Dia mm 500 600 500x2 700 600x2 700x2 750 Motor(8P) kW 0.1 0.2 0.1x2 0.4 0.2x2 0.4x2 0.75x2 Refrigerant R-22 / R407C Power Consumption kW 10.7 / 5.7 14.5 / 8.5 17.3 / 11.3 20.8 / 12.8 28.9 / 14.9 38.3 / 21.3 47.5 / 27.5 Dimension(WxDxH) mm 730x750x1750 880x750x1750 1180x750x1750 1180x750x1750 1480x750x1750 1850x850x1830 2050x890x1900
-
FOR CLOSE EXAMINATION ROOM
항온항습기는 전산 기기실의 부속품의 열팽창과 내부 응결 및 정전기 발생 등으로 인해 일어날 수 있는 동작 마비현상을 막기위해 헌열과 잠열이 항상 일정한 상태로 유지되도록 설계한 시스템으로 단순한 냉각 뿐만 아니라, 컴퓨터기기 제조자에 의해 지정된 운전 조건에 따라 온도,습도,공기청정,공기확산을 동시에 조절해 주는 첨단 제품입니다.
-

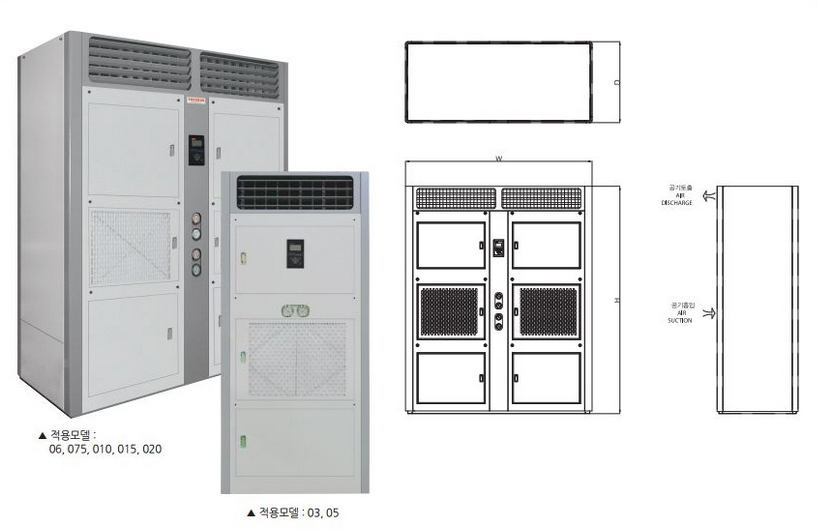

UP TYPE
Model SKS-WU-03 SKS-WU-05 SKS-WU-06 SKS-WU-075 SKS-WU-010 SKS-WU-015 SKS-WU-020 Item W 880 950 1,480 1,480 1,480 2,050 2,050 D 650 750 750 750 750 890 890 H 2,100 2,100 2,300 2,300 2,300 2,500 2,500
Model SKS-WU-03 SKS-WU-05 SKS-WU-06 SKS-WU-075 SKS-WU-010 SKS-WU-015 SKS-WU-020 Spec Cooling Cap. kcal/hr 9,000 15,000 18,000 21,000 30,000 45,000 60,000 W 10,465 17,442 20,930 24,419 34,884 52,326 69,767 Heating Cap. Kcal/hr 6,880 8,600 10,320 12,040 17,200 20,640 24,080 Humidifier Cap. L/hr 3.6 4.8 7.2 7.2 7.2 8.4 9.6 Blower Type Sirocco fan Air Volume CMM 36 60 72 90 120 180 240 Pressure mmAq 15-20 Fan Model #x EA #1 1/2DSx1 #1 3/4DSx2 #1 1/2DSx2 #1 5/8DSx2 #1 3/4DSx2 #2DSx2 #2DSx2 Motor kW 0.3x8P 0.5x8P 0.3x8P 0.4x8P 0.5x8P 1.1x8P 1.5x6P Compressor Type Hermetic(ECRoll) Power kW 2.2 3.7 2.2x2 5.5 3.7x2 5.5x2 7.5x2 Evaporator Type Multi-Pass Cross Finned Tube Elec. Heater Type Aero Finned Tube Power kW x step 4x2 5x2 3x4 3.5x4 5x4 6x4 7x4 Humidifier Type Electrod Power kW 3 4 6 6 6 7 8 Air Filter Type Ployester (A.F.I 85%) Condensingt (Water Cooled) Type Shell & Tube / Water Cooled Type Water Vol. L/min 27 51 54 69 97 153 221 Serface Area ㎡ 1.31 2.48 2.62(1.31x2) 3.38 4.72(2.36x2) 7.44(3.72x2) 10.74(5.37x2) Nozzle Inch mm 25A 32A 32A 40A 40A 50A 50A Refrigerant R-22 Power Consumption kW 10.5 / 5.5 14.2 / 8.2 17 / 11 20.3 / 12.3 28.4 / 14.4 37.2 / 20.3 46 / 26 Dimension(WxDxH) mm 880x650x2100 950x750x2100 1480x750x2300 1480x750x2300 1480x850x2300 2050x890x2500 2050x890x2500
-
FOR COMPUTER ROOM
-
DOWN TYPE
Model SKS-WD-03 SKS-WD-05 SKS-WD-06 SKS-WD-075 SKS-WD-010 SKS-WD-015 SKS-WD-020 Item W 880 1,180 1,480 1,480 1,700 2,050 2,050 D 750 750 750 750 850 1,000 1,000 H 1,750 1,750 1,750 1,750 1,750 1,950 2,050
Model SKS-WD-03 SKS-WD-05 SKS-WD-06 SKS-WD-075 SKS-WD-010 SKS-WD-015 SKS-WD-020 Spec Cooling Cap. kcal/hr 9,000 15,000 18,000 21,000 30,000 45,000 60,000 W 10,465 17,442 20,930 24,419 34,884 52,326 69,767 Heating Cap. Kcal/hr 6,880 8,600 10,320 12,040 17,200 20,640 24,080 Humidifier Cap. L/hr 3.6 4.8 7.2 7.2 7.2 8.4 9.6 Blower Type Sirocco fan Air Volume CMM 36 60 72 90 120 180 240 Pressure mmAq 15-20 Fan Model #x EA #1 1/2DSx1 #1 3/4DSx2 #1 1/2DSx2 #1 5/8DSx2 #1 3/4DSx2 #2DSx2 #2DSx2 Motor kW 0.3x8P 0.5x8P 0.3x8P 0.4x8P 0.5x8P 1.1x8P 1.5x6P Compressor Type Hermetic(ECRoll) Power kW 2.2 3.7 2.2x2 5.5 3.7x2 5.5x2 7.5x2 Evaporator Type Multi-Pass Cross Finned Tube Elec. Heater Type Aero Finned Tube Power kW x step 4x2 5x2 3x4 3.5x4 5x4 6x4 7x4 Humidifier Type Electrod Power kW 3 4 6 6 6 7 8 Air Filter Type Ployester (A.F.I 85%) Condensingt (Water Cooled) Type Shell & Tube / Water Cooled Type Water Vol. L/min 27 51 54 69 97 153 221 Serface Area ㎡ 1.31 2.48 2.62(1.31x2) 3.38 4.72(2.36x2) 7.44(3.72x2) 10.74(5.37x2) Nozzle Inch mm 25A 32A 32A 40A 40A 50A 50A Refrigerant R-22 Power Consumption kW 10.5 / 5.5 14.2 / 8.2 17 / 11 20.3 / 12.3 28.4 / 14.4 37.2 / 20.3 46 / 26 Dimension(WxDxH) mm 880x750x1750 1180x750x1750 1480x750x1750 1480x750x1750 1700x850x1750 2050x890x1950 2250x890x2050
